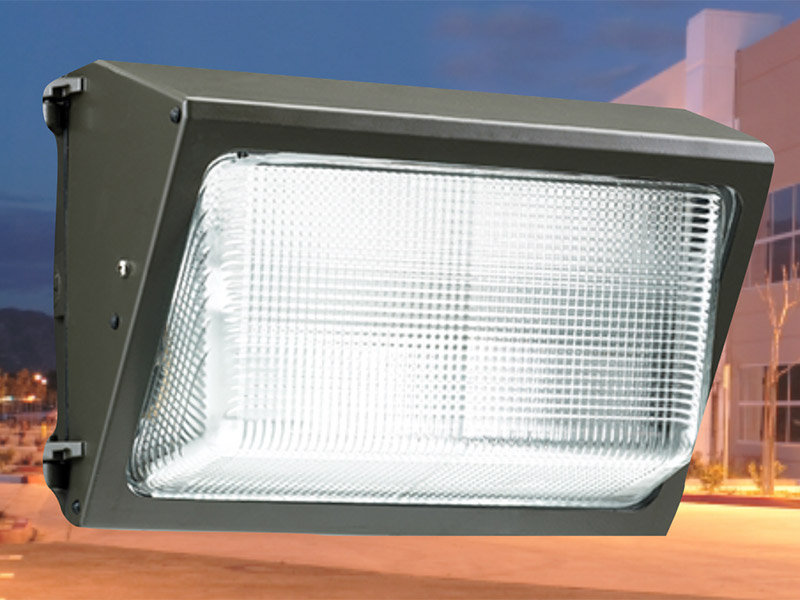

Altech LED Wall Pack

Specs

Input Wattage: 90W
Replacement Wattage: 350W
Input Voltage Range: 120-277V
Delivered Lumens: 8614 LM
Lumen Efficiency: 95 LM/W
Color Rendering Index (CRI): 70+
Color Temperature (Kelvin): 3000K-5700K
Beam Angle: 120°
Power Factor: 0.99
Frequency: 50/60Hz
MAX THD: (%) 15
Min. Ambient Temp: -30.0°F / -34.4℃
Max. Ambient Temp: 130.0°F / 48.9℃
IP Rating: IP65
Dimming Compatible: 3 in 1 dimming function (1˜10Vdc or PWM signal or resistance)
Product Weight: 9.9LB / 4.5KG
Product Height: 9.1” / 233mm
Product Length: 13.0” / 332mm
Product Width: 7.4” / 189mm
Lens: Glass
Materials: Die Cast Aluminum
Finish: Black (Default)
LM70 Life Time: 100,000 Hours
UL/cUL: E481056
DesignLights Consortium®: YES
CE: YES
FCC: YES
Warranty: 5 Years



Altech Wall Mount Specification Download
