Delivered Lumens (nom) 15,000 lm
Efficacy 112 lm/W
Color Accuracy (CRI) 77
Color Appearance (CCT) 5700K
Color Accuracy (SDCM) <3 SDCM
Center Beam Candelpower 5018 cd (CBCP)
Spacing Criter ion 0-180 1.36
Spacing Criter ion 90-270 1.36
Input Power 135W
Input Voltage 120-277V
EMI FCC Compliant

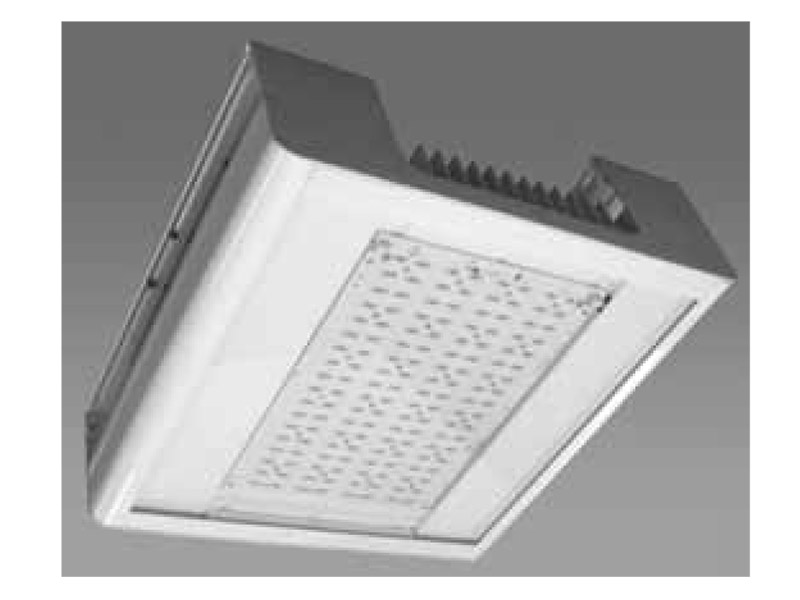

The DL-HB9 Series luminaire is a high efficacy LED lighting solution perfectly suited for high-bay applications.
The housing consists of a durable extruded aluminum body assembled with a highly conductive extruded aluminum heat sink. Durable, high efficiency glass optic ensures long life performance.
